GU 55/92 Rhinobolt Hook Door Lock 854-12382

GU Rhinobolt Hook Multipoint Door Lock 2.17" (55/92) Backset, Manual Gear.

This is the gear with the bottom rhino hook and top rhino hook. Optional Top Shootbolt 854-14551 and optional bottom shootbolt 854-14549 sold separately. Optional extension available for taller doors, please contact us.

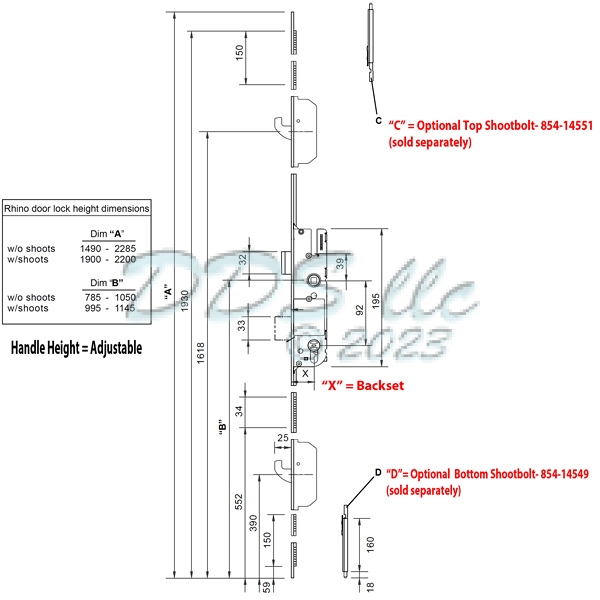

Total Length of this lock: 89.96" (2285mm). Uses American style cylinder with tailpiece.

Manual version engages multipoint when door handle is lifted.

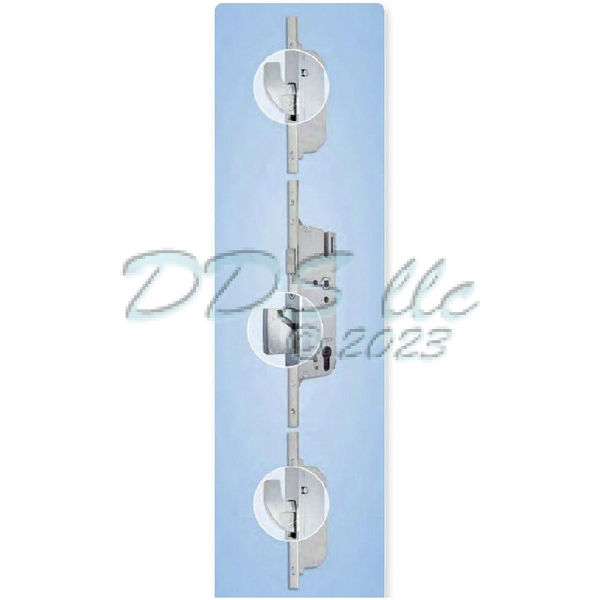

3- Point locking system features tempered steel hooks which lock in an upward direction providing maximum security and protection against warping of the door panels. Heavy duty mortise construction with reinforced lever return spring system. Two steel horns 1" lock in an upward direction providing an anti-lift device. 3/4" throw on deadbolt. Latch is non-handed and can be reversed.

If you need help locating the correct part for your door, please call 727-386-4629 or email G-U Questionnaire to sales@patiodoorrepair.net.

**Note: In some cases, when replacing old lock to new lock, modifications to strike plate holes must be made to accept new latch and deadbolt.
