GU Secury Automatic Multipoint Lock 1.77" Backset with Latch Bolts. With Round Faceplate Edges. 6' 8" Door.

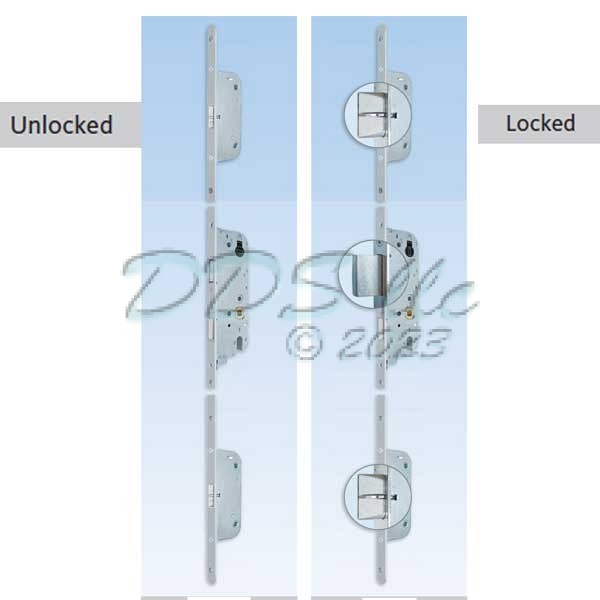

One-piece Secury automatic door lock for lever handles for a 6' 8" tall door. The automatic door lock works by simply closing the door and the latchbolts instantly throw 20mm and are secured to prevent them being forced back. By turning the key from the outside or the knob from the inside, it will engage the 1” central deadbolt and lock the top and bottom latches to become a 3 deadbolt locking system. America version, key above the handle.
Made for an 6' 8" door. Faceplate has round edges. Stainless steel faceplate finish.
Additional information:
3-point, one piece locking system for 6' 8'' doors.
Heavy duty mortise construction with reinforced lever return spring system.
Locking by US-cylinder with 90° turn of key or thumb-turn.
No lifting of handle to engage locking points.
Top and bottom Automatic latchbolts projection from 10 to 20mm: - provide security against forced entry - help prevent air infi ltration from gasket - protect the door panel from warping.
1'' (25mm) throw on deadbolt with baby sitting function.
Non handed, latch easily reversible.
8mm square spindle. 92mm centres (spindle to cylinder).
Handle height variable (36'' recommended).
16mm stainless steel faceplate with radius ends for easy installation and cleaner look.
Same hardware groove detail throughout our entire door lock program.
Extension with additional lock point is available for doors taller than 8' (6-33479-04-0-8B).
To be used with lever handle set (US-cylinder above handle)
***Not always in stock, please call to check. May take 3 to 4 weeks to ship. Non-returnable.
If you need help locating the correct part for your door, please call 727-386-4629 or email G-U Questionnaire to sales@patiodoorrepair.net.
|
GU
Number
|
Description |
Backset |
Deadbolt
Throw
|
Handle
Height
|
Bottom Latch
Bolt Position
|
Top Latch
Bolt Position
|
Overall
Length |
| 854-15710 |
6-35856-01-R-8B |
45mm
(1.77) |
25.4mm
(1.00) |
Adjustable |
543mm
(21.38) |
792mm
(31.18) |
1590mm
(62.68) |
