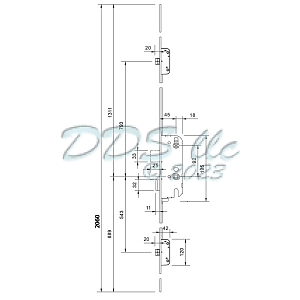

Eagle Automatic Multipoint 1.77" Backset with Latch Bolts
The automatic door lock works by simply closing the door the upper and lower latches will instantly engage. By turning the key from the outside or the knob from the inside, it will engage the 1” central deadbolt and lock the top and bottom latches to become a 3 deadbolt locking system. America version, key above the handle.
Made for an 6' 8" door and can be trimmed. Stainless Steel faceplate.
If you need help locating the correct part for your door, please call 727-386-4629 or email G-U Questionnaire to sales@patiodoorrepair.net.
|
GU
Number
|
Description |
Backset |
Deadbolt
Throw
|
Handle
Height
|
Bottom Latch
Bolt Position
|
Top Latch
Bolt Position
|
Faceplate
Finish |
| 854-10939 |
45/92 8-16-889-2060 US SS
6-33974-01-R-8
|
45mm
(1.77) |
25.4mm
(1.00) |
889mm
(35.00) |
543mm
(21.38) |
793mm
(31.22) |
Stainless
Steel |
