• Model: 56-170

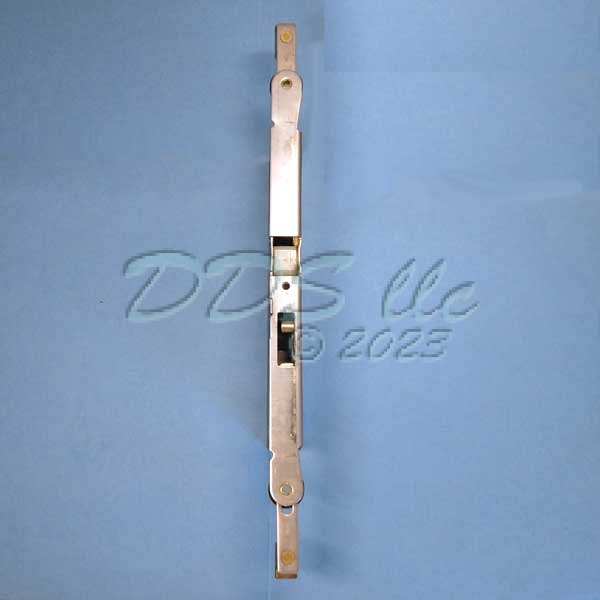

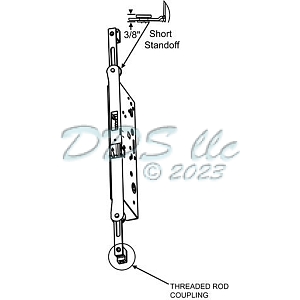

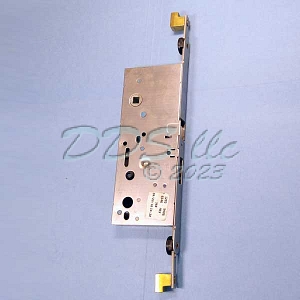

Ashland Passive Concealed Multi Point lock. 60mm backset. For inactive doors, no latch or deadbolt. Short Standoff. 1/4-20 Rod thread coupling. Patent No. 6.209.931. Ashland passive lock W5110-STPAS4.

How To Reverse the Handing on an Ashland Single Point Door Lock.
Refer to Photo below

1. Before the latch is installed. Locate the Latch Release mechanism. With a screw driver or similar tool. Push it into the hole and move it up until the latch pops out of the housing. Remove tool.

2 & 3 Rotate the Latch 180 degrees. With your finger push the Latch back into the housing.

Or visit this video. https://www.youtube.com/watch?v=QbFzvtXi6JE



Change Handing on Ashland Single Point Lock
