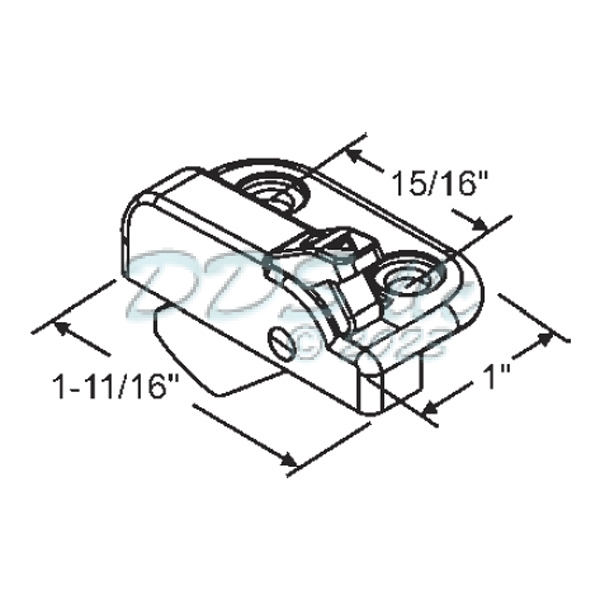

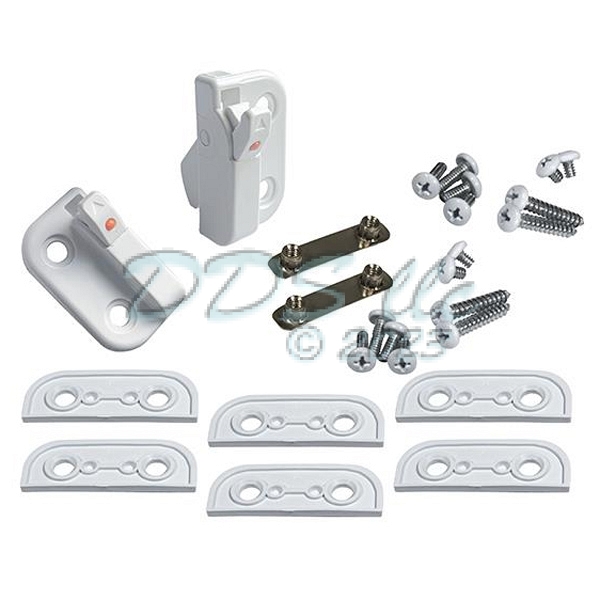

Plastic Single Action Ventlock. Color White. Sold in pairs (LH and RH). Window opening control device. Package includes WOCD, screws, screw post and shims.
Our 50-2007 series is a single action WOCD designed to install directly to the face of the window jamb and interact with the active sash of any hung or sliding window. This device comes with mounting hardware to assure proper installation and is available in right & left handing. The 50-2007 series was designed to be applied in the field or in the factory. These units compliance with the code ASTM F2090- 2008 and 2010 when properly installed.
Includes (3) shims for adjustable "A" dimension:
|
Distance between sash
|
# of Shims |
| 0.256" - 0.374" |
0 |
| 0.157"- 0.256" |
1 |
| 0.03" - 0.157" |
2 |
| 0" - 0.06" |
3 |
