GU 50/92 RhinoShoot Hook Shootbolt Lock 854-12391

GU RhinoShoot Hook and Shootbolt Lock 2.00" (50/92) Backset, Manual Gear. Active Door Lock

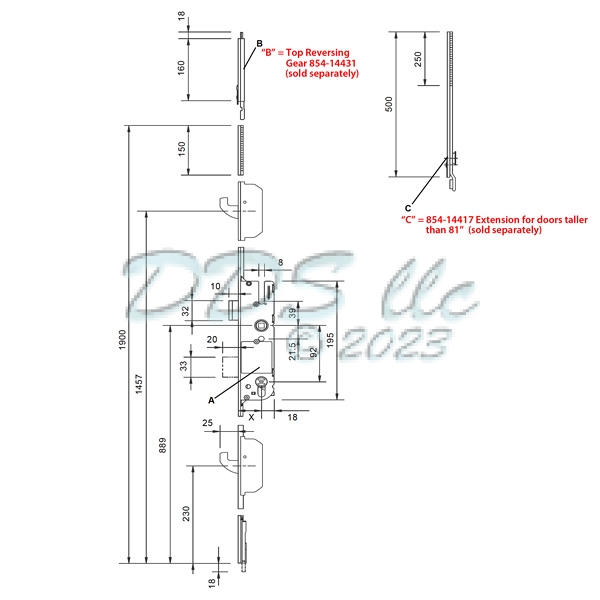

This is the Active gear with the bottom shootbolt, bottom rhino hook and top rhino hook. Top Shootbolt 854-14431 sold separately. Extension for doors taller than 81", 854-14417 sold separately. Installation Screws 854-11103.

Manual version engages multipoint when door handle is lifted.
The Rhino-shoot 5-point locking system features shoot bolts, top and bottom, two tempered steel “horns” which lock in an upward direction providing maximum security and protection against warping of the door panels. Also featured is our 90 degree locking mechanism that incorporates a standard US cylinder. Heavy duty mortise construction with reinforced lever return spring system. Top and bottom shoot bolts, two steel “horns”, deadbolt and latch.Latch is non-handed and can be reveresed.

If you need help selecting the correct part for your door, please call 727-386-4629 or email G-U Questionnaire to sales@patiodoorrepair.net.

**Not always in stock. May take around 4 weeks to ship.

**Note: In some cases, when replacing old lock to new lock, modifications to strike plate holes must be made to accept new latch and deadbolt.
