Model: 850-3622876

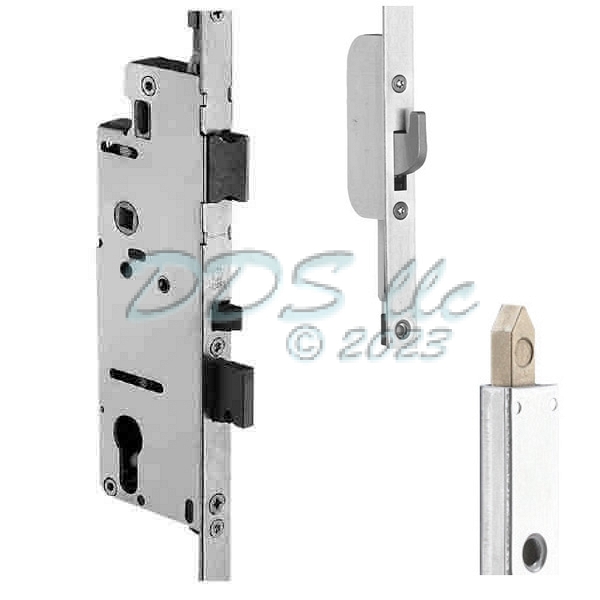

Hoppe Multipoint 1.77" Backset Manual Gear with Bottom Swinghook and Shootbolt

Manual version engages multipoint when door handle is lifted. The HLS®9000 Swing Hook/shootbolt offers the added security of both horizontal and vertical strength for increased wind-load protection.

If you need the exact part please fill out this Questionnaire and call or email back to sales@patiodoorrepair.net. Hoppe Questionnaire

Link to the Complete pdf for the 16mm Faceplate Manual Swinghook/Shootbolt Parts

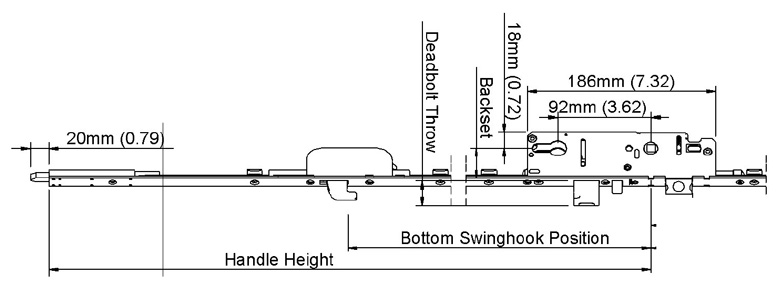

hoppe Automatic gear with tongue extension

Part Number	Description	Backset	Deadbolt Throw	Handle Height	Bottom Swing Hook Position	Max Cutoff
3622876	M/45/25 914 SW1SB1 620 16S 20	45mm (1.77)	25.4mm (1.00)	914mm (36.00)	620mm (24.41)	NA

Part
Number

Description

Backset

Deadbolt
Throw

Handle
Height

Bottom
Swing
Hook
Position

Max

Cutoff

3622876

M/45/25 914 SW1SB1 620 16S 20

45mm
(1.77)

25.4mm
(1.00)

914mm
(36.00)

620mm
(24.41)
